Composite Wear Plates

Description

Ador Supplier & Distributor Near Me: Your Source for ENDURA-FON Wear Plates

Ador is a trusted name in welding solutions, offering advanced products tailored to meet industry demands. Among its premium offerings are the ENDURA-FON Wear Plates, engineered for superior abrasion and impact resistance. If you’re in Haryana, your local Ador supplier and distributor provides easy access to these high-performance wear plates for diverse industrial applications.

What Are ENDURA-FON Wear Plates?

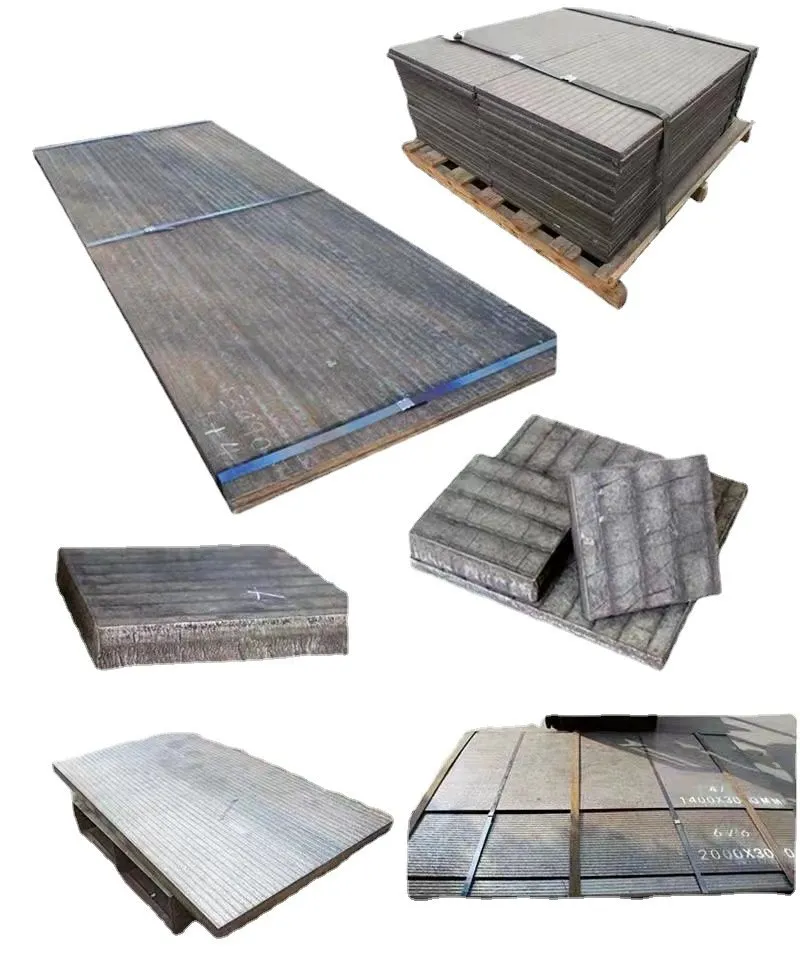

ENDURA-FON Wear Plates are steel plates with a hard, wear-resistant overlay created using the flux-cored wire welding process. These plates are designed to endure extreme abrasion and impact, ensuring long-lasting performance in demanding environments.

Features of ENDURA-FON Wear Plates

• Hard Wear-Resistant Overlay: Made using iron carbide and complex carbides for maximum durability.
• Stress Relief Checks: Fine stress relief cracks ensure overlays do not spall under extreme conditions.
• Customizable Design: Plates can be manufactured in pipe or bend forms and tailored to specific applications.
• Adaptable Composition: Ador manufactures its flux-cored wires, allowing the wear plate composition to be modified for unique customer needs.

Grades of ENDURA-FON Wear Plates

1. Grade 1020 Type

• Microstructure: Iron carbide with hard martensitic structures.
• Hardness: 55-58 HRc.
• Features: Excellent resistance to high abrasion and high impact.
• Applications: General-purpose abrasion and impact.

2. Grade 1060 Type

• Microstructure: Complex carbides providing resistance to grinding abrasion.
• Hardness: 57-60 HRc.
• Features: Excellent resistance to galling, scratching, and high-stress grinding abrasion.
• Applications: Severe abrasion with moderate impact; effective up to 450°C.
• Chemical Composition:
  • C: 4.5-5.5%
  • Mn: 0.5-1.0%
  • Si: 0.8-1.1%
  • Cr: 29-32%
  • B: ≤ 1.0%

3. Grade 1055 Type

• Microstructure: Niobium-based carbides for resistance to low-stress scratching and particle abrasion.
• Hardness: 61-64 HRc.
• Features: Excellent resistance to abrasion and impact; effective up to 500°C.
• Applications: Low-angle particle abrasion and high-stress grinding.

4. Grade 1065 Type

• Microstructure: Complex chromium carbide with Niobium, Molybdenum, and Vanadium.
• Hardness: 63-65 HRc.
• Features: Resistant to moderate to high abrasion, corrosion, and high-velocity particle erosion; effective up to 600°C.
• Performance: Weight loss during ASTM G-65 particle abrasion test: 0.01078 grams (on an 8 mm layer).

Applications of ENDURA-FON Wear Plates

ENDURA-FON Wear Plates are versatile and cater to industries like:

• Mining
• Cement
• Power plants
• Steel production
• Construction equipment
• Oil and gas pipelines
• Defense and aerospace

These plates are ideal for applications requiring high abrasion resistance, such as chute liners, hoppers, and conveyor belts.

Why Choose Ador in Haryana?

As an authorized Ador supplier and distributor near you, you gain access to:

• Premium Quality Products: Like the ENDURA-FON Wear Plates and more.
• Customized Solutions: Tailored wear plates for your specific industrial needs.
• Technical Expertise: Support and advice for selecting the right product.
• Competitive Pricing: High-quality products at affordable rates.

Get Your ENDURA-FON Wear Plates Today!

For high-performance wear plates designed for durability and efficiency, contact your nearest Ador supplier and distributor near you. Ensure your operations run smoothly with ENDURA-FON Wear Plates, crafted for the toughest industrial challenges.
