LH 900

Description

LH Dealer in Haryana

Key Properties

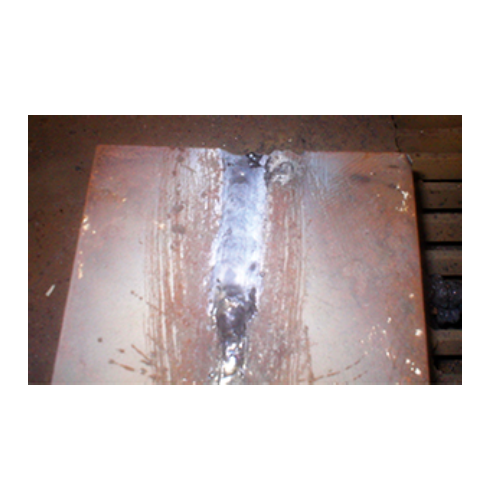

The LH electrode is specifically engineered to produce a high blowing effect and generate a hot exothermic arc. This unique design allows for quick displacement of molten metal, which improves visibility during operation. As a result, the cuts are smooth, and the molten material is efficiently blown away, simplifying post-work cleanup. Additionally, the electrode does not damage the metal structure, ensuring precise and reliable cutting and gouging every time. Best LH Dealer in Haryana | Quality Livestock for Sale

Typical Applications

The LH electrode is versatile and suitable for a variety of industrial applications:

• Chamfering, Gouging, and Making Grooves: It excels at chamfering, gouging, and creating grooves in all conductive metals, providing clean and effective results.
• Weld and Rivet Removal: It is highly effective for removing defective welds and rivets without the need for additional equipment like oxy-acetylene or compressed air, streamlining the process.
• Foundry Applications: The LH electrode is perfect for removing flashers and risers in foundry castings, improving both quality and efficiency in the casting process.
• Machine Frame Beveling: It is ideal for beveling cracks in machine frames without requiring dismantling, which saves valuable time and effort.
• Construction Site Cutting: The LH electrode is indispensable for cutting metal parts on construction sites and is a key component for welding preparations.

Procedure

To use the LH electrode effectively, hold it at a 35-degree angle to the surface. Then, push the arc deeper and forward to drive molten metal and slag away. For deeper grooves, repeat the process in stages until the required depth is achieved. This ensures efficient metal removal and smooth, clean cuts. Best LH Dealer in Haryana | Quality Livestock for Sale

Welding Current

The LH electrode is compatible with both AC and DC power sources, with DC (-) being recommended for optimal performance. It is available in the following sizes and current ranges:

• Size (∅ mm) / Length: 3.2×350, 4.0×350, 5.0×350
• Current Range (amps):
  • 3.2×350: 250-350 amps
  • 4.0×350: 300-400 amps
  • 5.0×350: 350-500 amps

These specifications ensure that the LH electrode performs effectively across a range of tasks, maintaining efficiency and reliability.
